Fixed Focus Lenses Ⅰ AF12k1.25x
- Lens Spec.
-
Parameter Spec. Remark Camera 12k 7㎛ Line CCD CCD size 86.016 ㎜ Mag. 1.25 x 1.1~1.4 x F/# F/5.3 Image NA 0.042 EFL 86.8 ㎜ MTF 0.3 @ 72lp/㎜ DOF ± 0.1 ㎜ Optical DOF @Object Distortion 0.01% Wavelength 480 ~ 656 ㎚ Visible ray FWD 118.3 ㎜ Object~1st surface
1.1~1.4 x
( 127.8~110.9㎜ )BWD 154.8 ㎜ Last surface~CCD
1.1~1.4 x
( 142.0~168.0㎜ )TTL 335.4 ㎜ Object~CCD Size Φ 46, 72 ㎜ Only Lens Iris Fixed CCD adapter Exclusion Possible Inverse Mag. 0.8 x MTF 0.35 @ 72lp/㎜ F/12 0.7~0.9 x
- Lens Shape

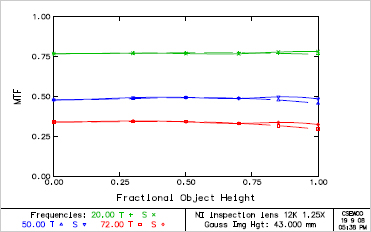

- MTF(Field)

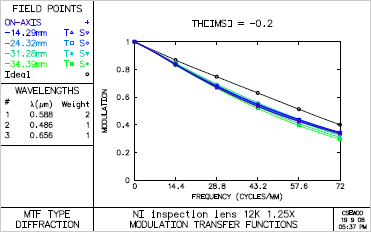

- MTF(Frequency)

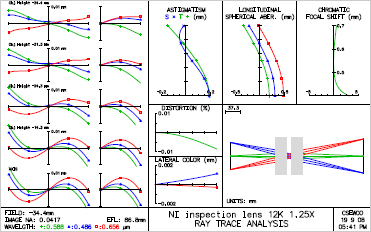

- Ray fan
- AF12k1.25x Test Image

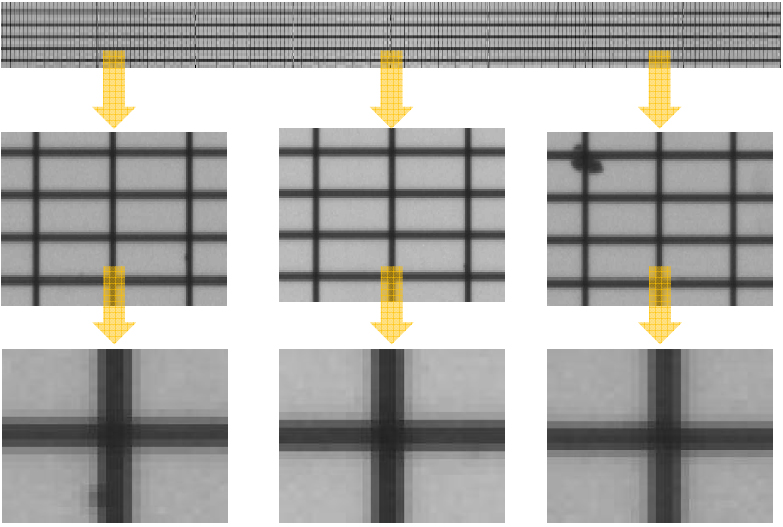

- Grid Chart

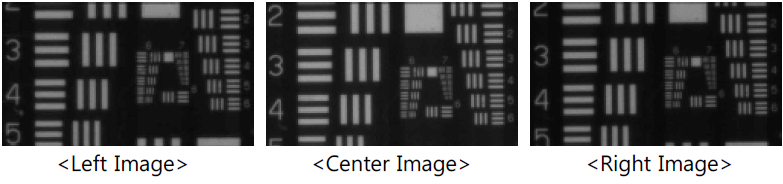

- USAF Chart
