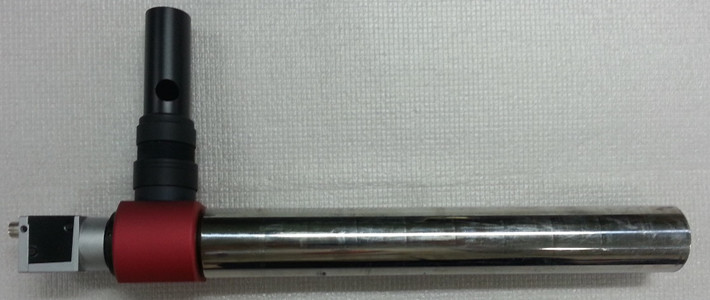

Auto Collimator

Auto Collimator

Features of autocollimator

The autocollimator is an optical device that can measure angles in a non-contact manner.
This has a resolution with 300 f and 2.6 arc seconds by applying a high-resolution USB camera.
Capable of customizing the focal length of the autocollimator.

  • Measuring range
    - Plane angle measurement - prism angle measurement - lens eccentricity measurement
  • Specifications
    - Caliber 38mm
    - Focal length 300mm (available to cope with 200 to 500mm)
    - Application of a high-resolution camera (An eyepiece is applicable)
    - Angular resolution 1.2 seconds (Arcsec) (when it is F300)
